Perpetual Locomotive.

Until the battery dies and the DCS goes south.

J. S. Bach wrote:Until the battery dies and the DCS goes south.

I'm sure that Barry will have that addressed in the next edition of his book........

Rufus, you like Dariusz Zawadski?
Reference: => https://youtu.be/8kzWFhAcT6A

Tug-of-War Locomotive

Video=> https://youtu.be/8_UUPA8EPxk

webenda wrote:Tug-of-War Locomotive

Video=> https://youtu.be/8_UUPA8EPxk

Reminds me of a GG1 I walked through at Strasburg, PA museum. If the engineer wanted
to go in the opposite direction, he simply walked through the snug windowed central chamber and shifted the power lever (my description of it all) to go forward in the new direction. Two "fronts" but one purpose at a time.

webenda wrote:Rufus, you like Dariusz Zawadski?
Reference: => https://youtu.be/8kzWFhAcT6A

Very appealing.

If this is a good idea...


then this ought to work even better!

Fortunately, then, instead, diesels were invented.

webenda wrote: ...snip... then this ought to work even better!

Hmmm, and I thought that quartering the drivers on a 4-8-4 was a hard job.

This one will work better. Take you anywhere you want to go.

What if we replaced the dirty coal with clean electricity to heat the boiler?
Yeah, that ought to work.

That is a long locomotive. How is it going to negotiate curves?

A hinged frame and ball joint in the boiler you say? Yeah, that ought to work!

Yes, but would not that big driver wheel right at the joint prevent any flexing there?

MurphOnMillerAve wrote:Yes, but would not that big driver wheel right at the joint prevent any flexing there?

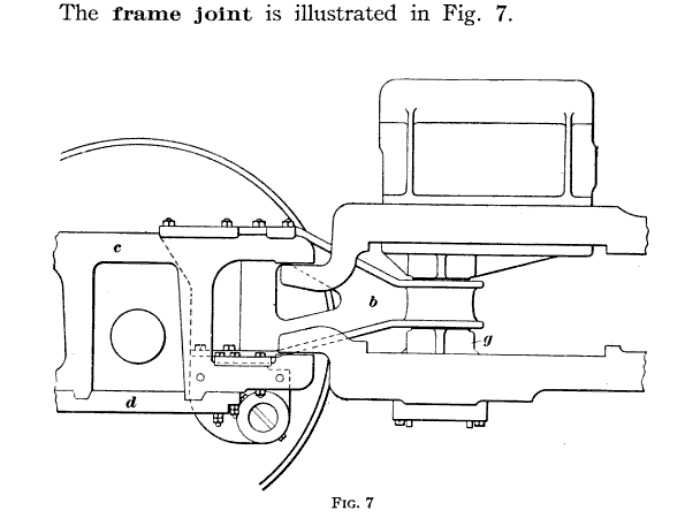

There are two ball joints, one inside each boiler half. I can see the frame pivot through the spokes of the wheel. With a double ball joint joining the boilers exact alignment of the frame pivot with boiler joints is not necessary. Figure 7 shows a similar frame pivot with the yaw pivot point behind the wheel.
